DUBB ![]() 21:36:37 Thu Jun 30 2011 Offline 1399 posts BBMG MASTER BLASTER +1000 ![]() Reply |
I sure like hearing that, and that business is good for you, over there. I sure don't evey you having to eek out an existance is such a suffering economy. And gentlement don't discuss business insofar as bringing up money, but it's nice to know that you are busy, and that the new boards are selling. I hope that they are selling at least somewhat significanly better than the old versions, anyway. I had one of those, so I don't need to explain that I understood why they were the best, but most people spending money on an upgrade of any kind expect some kind of immediate gain of something. FPS comes from pressure, and although your boards allow for higher voltage, which you in turn need to run at the high pressures that we use to get really big increases in fps, and great adjustabilty (and that cool "puse rifle" led display), there wasn't much that could be gained there, except cyclic rate. I'm glad I suggested it, THAT is something that can't be had any other way, and certainly can't be bad for business. I knew I would have to buy another board for that, as did everyone here, who had one of your original boards. We are all about extremes around here, you know. I hope they are selling better, I don't have many good ideas, perportionally to the bad ones, especially if it helps out a friend who deserves it, in any way. I love mine, and NOW I can't think of anything that would make me like it any better. 2000prm is just awsome, the new sound is music to my ears. I just leave it at 2000rpm, unless I do the occasional single shots. I can't give anything a higher endorsement. For what it's worth, although I bought a BBMax chip at the same time I bought my Blackbird from ray, it was just to hold me over, until [ Continued ] View Rest Of Post
| |||||||
Mood: |
SONYtec 14:46:32 Thu Jun 30 2011 Offline 3558 posts BBMG LIFE BLASTER +2000 ![]() Reply |
Nice Sergey!!!
| |||||||
Mood: |
Sergey_new_pcb 14:44:31 Thu Jun 30 2011 Offline 287 posts BBMG Major General ** ![]() Reply |
The whole lot of boards are travelling to Canada plus one more to California.
| ||||
Mood: |
camracer ![]() 00:11:39 Wed Jun 8 2011 Offline 3515 posts BBMG LIFE BLASTER +2000 ![]() Reply |
Agreed DUBB! Thanks again. I am going to give it a try! What a time saver. I can for sure modify that set-up to fit my prototype. ...a little cutting, a little grinding....
![]()
| |||||
Mood: | Mood Now: ![]() ![]() |
DUBB ![]() 14:06:56 Tue Jun 7 2011 Offline 1399 posts BBMG MASTER BLASTER +1000 ![]() Reply |
I like how perfectly suited to integration into the project those are, being all bare pcb with the adjustment pot just hanging there, so you can mount it anywhere you can drill a hole, and concealing the pcb. All your protomag nees to support one of those is enough room for the pcb inside it somewhere. And like you pointed out, it can be done fast.
| |||||
Mood: |
camracer ![]() 10:29:33 Tue Jun 7 2011 Offline 3515 posts BBMG LIFE BLASTER +2000 ![]() Reply |
Another great find DUBB! I wonder what the regulator chip is in the first post?
I might just do that, 'cause I am short on free time. Here's a 5A version (not that we will need that much current) http://cgi.ebay.com/Reversible-12-24V-5A-Motor-Speed-Control-PWM-Controller-/220779697139
| |||||
Mood: | Mood Now: ![]() ![]() |
DUBB ![]() 04:56:52 Tue Jun 7 2011 Offline 1399 posts BBMG MASTER BLASTER +1000 ![]() Reply |
I put the switch in one of the old locations, but it's only a temporary arrangemet, it looks like I can just run it with 15v, and it will be happy. I reccomend against the resistor as a motor controller, it'll be really inefficient. I would go with one of two possible contenders, both of which are better. One is a PWM brush motor speed controller:
http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=190539724702&ssPageName=STRK:MEWAX:VRI Or make a basic adjustable regulator based on an LM317, or similar regulator: http://diyaudioprojects.com/Technical/Voltage-Regulator/ Consider something like one of those. If I need more motor speed control, I'll get me one of those PWM speed controllers, it's the most efficient of all of them.
| |||||
Mood: |
camracer ![]() 23:51:17 Mon Jun 6 2011 Offline 3515 posts BBMG LIFE BLASTER +2000 ![]() Reply |
Use the old selector switch locations that we don't use anymore, just need some spdt switches. No better spot for controls. It's all ready to go!
I will use them myself soon. DUBB, glad that Nichibo motor is working well! It sure does in my prototype mag! ---Cam
| |||||
Mood: | Mood Now: ![]() ![]() |
Tbkahuna 22:45:24 Mon Jun 6 2011 Offline 1450 posts BBMG MASTER BLASTER +1000 ![]() Reply |
DUBB,
I really like that Nichibo motor. Hey, where did you mount the switch. I think that goes hand-in-hand with the variable resistor for the speed. We need a good place to mount the extras. I also wanted to use a switch to drop the voltage directly for a hi/low rpm setting for whatever max voltage you have available to the mag. Lots of possibilities. TBK | ||||
Mood: |
DUBB ![]() 20:52:38 Mon Jun 6 2011 Offline 1399 posts BBMG MASTER BLASTER +1000 ![]() Reply |
I got that new Nichibo motor in today, it's sweet, I'm running it with the 15v regulator (I dumped the jumper, and put in an spdt switch, instead). This is the perfect motor upgrade.
| |||||
Mood: |
camracer ![]() 11:48:59 Sat Jun 4 2011 Offline 3515 posts BBMG LIFE BLASTER +2000 ![]() Reply |
I was just being goofy!! ![]()
| |||||||
Mood: | Mood Now: ![]() ![]() |
DUBB ![]() 03:38:01 Sat Jun 4 2011 Offline 1399 posts BBMG MASTER BLASTER +1000 ![]() Reply |
Is that like when you have to buy a new car because the ashtray is full? I ordered one of those new motors, now, and if you really did blow your motor, you can have my old one, I won't be needing that anymore...
| |||||||||
Mood: |
selway 01:37:56 Sat Jun 4 2011 Offline 13 posts BBMG Private 1st Class Reply |
I see how it works now theres a little cap on the black box that comes off and can be moved to 1and 2 or 2 and 3. It comes from Sergey on 2 and 3.Thankx eveybody got to go fire here up.
| ||||
Mood: |
selway 01:27:51 Sat Jun 4 2011 Offline 13 posts BBMG Private 1st Class Reply |
Ok i see the pin and the little black square thing by it. What is it set at when it comes from Sergey.Is it at 15 volts now and can be changed to run more voltage to the mag by putting a jumper from 1 to 2. I just want to be sure Thankx.
| ||||
Mood: |
camracer ![]() 00:14:27 Sat Jun 4 2011 Offline 3515 posts BBMG LIFE BLASTER +2000 ![]() Reply |
DAMN!!! Thanks DUBB! I just burned out my mag motor! ...now I'm gonna have to buy a WHOLE new gun! ![]() ![]()
| |||||||
Mood: | Mood Now: ![]() ![]() |
Sergey_new_pcb 16:07:59 Fri Jun 3 2011 Offline 287 posts BBMG Major General ** ![]() Reply |
Correct now.
Selway, by jumper we mean small black plastic part, there is a conductor inside it. It can interconnect pins 1-2 or 2-3. Just keep it in 2-3 position. | ||||
Mood: |
DUBB ![]() 14:00:28 Fri Jun 3 2011 Offline 1399 posts BBMG MASTER BLASTER +1000 ![]() Reply |
OOPS, my bad. Then make that:
Jumper on pins 1 and 2 = Full unregulated battery voltage Jumper on pins 2 and 3 = 15v, regulated ![]() Better?
| |||||
Mood: |
selway 13:43:16 Fri Jun 3 2011 Offline 13 posts BBMG Private 1st Class Reply |
Could you show with a arrow where the jumper wire goes .thanks
| ||||
Mood: |
Sergey_new_pcb 10:35:53 Fri Jun 3 2011 Offline 287 posts BBMG Major General ** ![]() Reply |
Vice-versa.
| ||||
Mood: |
DUBB ![]() 08:16:19 Fri Jun 3 2011 Offline 1399 posts BBMG MASTER BLASTER +1000 ![]() Reply |

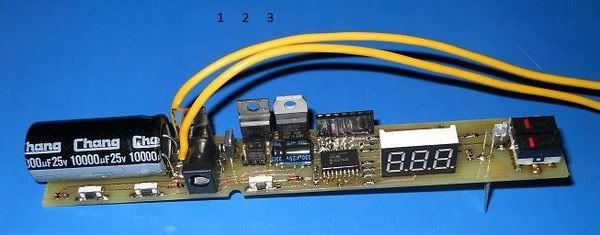

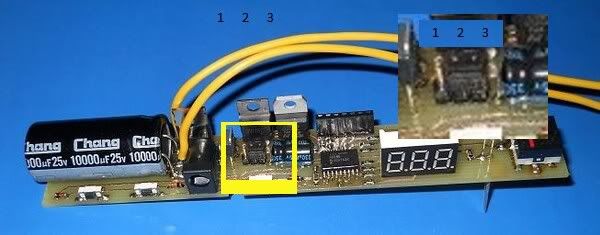

Allright, I enumerated the pins as you are looking at the picture, from left to right, one, two, three. For 15v limit, put the jumper on pins one and two. To unlimit and run full battery voltage, put the jumper on pins 2 and 3.
![]() Hows that?
| |||||
Mood: |
selway 03:14:12 Fri Jun 3 2011 Offline 13 posts BBMG Private 1st Class Reply |
Was wondering how to hook up the jumper wire for 15 volts .I see the picture of where it ends on the pin by the mag but where does it come from.I have board #3 and this thing is a blast.Shot with hpa at 1600 psi at 21 plus volts for a very short time so as not to burn the motor out.This thing has some power unreal. thankx
| ||||
Mood: |
DUBB ![]() 15:00:05 Sun May 29 2011 Offline 1399 posts BBMG MASTER BLASTER +1000 ![]() Reply |
Serial #5 delivered on time (exactly 2 weeks to Nevada), installed, and in love. I like that Sergey now includes a bit of dark, red, plexiglas, enough to make about 6 windows, the size I originally cut mine. I'll be putting that in shortly. As always, buttons are included as well, everything is of exceptional quality, I couldn't be happier with it, and I highly reccomend it, 2000 rounds per minute is an awsome thing!
That makes the Sergey Board well worth the investment, I hope the new boards do well, this makes all the difference, no original Drozd can touch this, modchip, or not. "Got BB's?" Thaks, again, Sergey, you have outdone yourself, again.
| |||||
Mood: |
DUBB ![]() 00:25:06 Sun May 22 2011 Offline 1399 posts BBMG MASTER BLASTER +1000 ![]() Reply |
Use the link in the first post of the thread I linked, and get yourself one or two of those dummies, and the charger/14500's I linked you to, and run either 4 batts/2 dummies, or better, 5 batts/1 dummy.
| |||||||
Mood: |
camracer ![]() 23:41:09 Sat May 21 2011 Offline 3515 posts BBMG LIFE BLASTER +2000 ![]() Reply |
Hello Rubberratt! Welcome. Sergey's SB-2 will handle 24v. DON"T PUT MORE THAN 15V into your Blackbird's magazine. I've done 21v, but only for VERY short bursts. DON'T burn your motor out!
Advancements have moved far beyond Xeno batteries here. Xenos are a waste of money! Go rechargeable. Try the 14500 Trustfire protected cell rechargeables. Let us know your issues as you run into them. We have a great "crew" here! ---Cam
| |||||
Mood: | Mood Now: ![]() ![]() |
DUBB ![]() 20:25:36 Sat May 21 2011 Offline 1399 posts BBMG MASTER BLASTER +1000 ![]() Reply |
Don't use more than 5 of those batteries, but use at least 4 if you are going to run 1600psi. I use 1600psi, and 3 won't open the valve enough. 6 of those will peak charge too high for the board. Those are rechargable, arent they? I would reccomend that you use 5 14500 lithium batteries (same size as "AA"), and one "dummy" battery, I'll look for a link I posted for those, and repost it for you.
edit: Here: http://bb.bbboy.net/straferbbmachinegunownersgroup-viewthread?forum=10&thread=2580 And here: http://cgi.ebay.com/Ultrafire-AA-AAA-Charger-2x-14500-Protected-3-6-Battery-/330428725148?pt=US_Batteries&hash=item4cef16379c http://cgi.ebay.com/2-x-New-14500-900mAh-3-6V-Lithium-Rechargeable-Battery-/270750181591?pt=US_Batteries&hash=item3f09f7e8d7
| |||||
Mood: |
Rubberratt 14:12:49 Sat May 21 2011 Offline 1 posts Reply |
Hello all,
I am new here and I am the guy who ordered (and received) Sergey's Ver #3 board ser #4 I am going to install the board next weekend, so I have been lurking and reading. I have a few quick questions, and maybe you all can help a noob out ![]() I am thinking of running my gun on the Xeno 3.6V batteries, and I think that the board will handle that with no jumper moves right ?? I also am going to try to run the gun at 1400-1600 psi, and was looking for some tips/advice there (settings). Thanks and Best Regards, RR | ||||
Mood: |
radical ![]() 16:11:47 Fri May 20 2011 Offline 4306 posts BBMG LIFE BLASTER +2000 ![]() Reply |
Thats a handsome pump action. Takes the 2 3/4 if I remember. Great home defense gun. A few inches shorter and it would be a great riot style. I have a Norinco Defender 5+1 12 gauge takes 3" and 2.75" Ghostring sites and steel receiver bottom eject. Heck of a gun for 200.00! Actually 147.00 on GB, New. http://i267.photobucket.com/albums/ii299/MAX100/NOR372-1.jpg Also have a WesternField 550A 12 gauge with the shorter 18.5" barrel. Great HD gun. Dropped some change with an individual carrying to sell and shook hands and walked out the door with it. No call, nothing. Takes longer to get a cola from the drink stand! Thats Kansas! http://www.auctionarms.com/closed/displayitem.cfm?itemnum=8851397.0 | ||||||
Mood: |
camracer ![]() 10:24:27 Fri May 20 2011 Offline 3515 posts BBMG LIFE BLASTER +2000 ![]() Reply |
[quote=radical at [unixtime]1305862880[/unixtime]][quote]Sometimes I get into this zone where I find myself doing stuff and barely remembering after how I did it right at all. Know what I mean? [/quote]
Yup! Before the internet, if I needed to fix something, I'd buy a book and learn all I could 'til I could fix it. Got quite a library! Now, I haven't bought a book in 10 years! So easy now to ''Google" a solution, and also get blogs and forums from others trying to do the same things! ....amazing!
| |||||
Mood: | Mood Now: ![]() ![]() |
DUBB ![]() 10:21:17 Fri May 20 2011 Offline 1399 posts BBMG MASTER BLASTER +1000 ![]() Reply |
| |||||||||
Mood: |
SONYtec 03:44:27 Fri May 20 2011 Offline 3558 posts BBMG LIFE BLASTER +2000 ![]() Reply |
Your lucky you haven't run across a part that was so toasted, it was burnt to a crisp, or blown to bits. Good luck searching that!!!
![]() You need a schematic for that.
| |||||
Mood: |
radical ![]() 03:41:20 Fri May 20 2011 Offline 4306 posts BBMG LIFE BLASTER +2000 ![]() Reply |
Self taught and ability to improvise and research are the assets. Heck, if a guy can become a multimillionaire and not be able to read, imagine the shear depth of character to get there!. Its good to be taught the basics and given some guidelines or parameters, the rest is up to the individual! Like tonight. I pulled one of the firearms I know little about. Had not seen any internal diagrams or any other info. Just pooled my knowledge and went at it to solve a bolt locking up and feed problem. In 30 minutes I had completely striped it and adjusted and changed some things that didnt look right and back together. Now racks and drops perfectly. Sometimes I get into this zone where I find myself doing stuff and barely remembering after how I did it right at all. Know what I mean? | ||||||
Mood: |
