Another Bay window rad set-up!

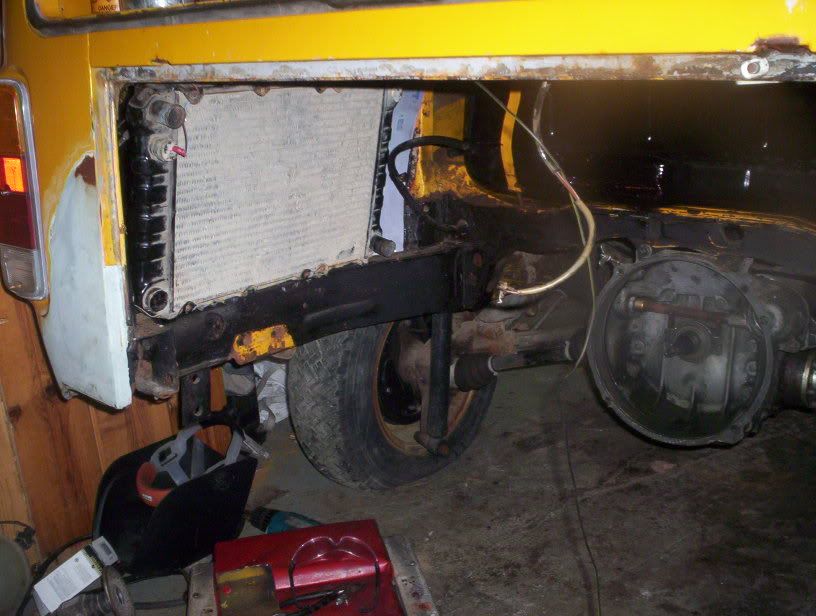

Here's the set-up I'm gonna used for my diesel engine:

Rad's are from 80-84 Honda Civic, for the left i used a rad from a manual, on the right i used a automatic one, although you can't see it hte fans are behind them they're connected to their own thermoswitch




---
Yann
A-Bus-With-No-Name 77


vw_legacy
17:02:05 Sun
Aug 28 2005

Offline
55 posts
Almost Serious

Reply
Re: Another Bay window rad set-up!

hoy are you going to plumb them together? are you going going to run them parallel or in series?


Yann70
12:08:26 Tue
Aug 30 2005

Offline
10 posts
Dreamer

Reply
Re: Another Bay window rad set-up!

I'm gonna run them in series, as the coolant exit the water-pump, it'll run into the right rad, then go to the left one, I made some calculation and I'm pretty sure the left cooling fan won't start unless severe running conditon/weather temperature!




---
Yann
A-Bus-With-No-Name 77


Yann70
12:10:10 Tue
Aug 30 2005

Offline
10 posts
Dreamer

Reply
Re: Another Bay window rad set-up!

I'm gonna run them in series, as the coolant exit the water-pump, it'll run into the right rad, then go to the left one, I made some calculation and I'm pretty sure the left cooling fan won't start unless severe running conditon/weather temperature!




---
Yann
A-Bus-With-No-Name 77


regis101
04:43:55 Wed
Aug 31 2005

Offline
4 posts
Dreamer

Reply
Re: Another Bay window rad set-up!

They definately look as if they belong there. Am I seeing three hose outlets on each rad? Makes for user friendliness,huh?


Yann70
12:51:24 Thu
Sep 1 2005

Offline
10 posts
Dreamer

Reply
Re: Another Bay window rad set-up!

Yes, you're right I've never seen the rad into the Honda engine bay so I c'ant tell why they have three outlet, i choose the one that fit me most and tig weld the third one!!!



---
Yann
A-Bus-With-No-Name 77


gfunkbus76
17:21:42 Fri
Oct 21 2005

Offline
1 posts
Dreamer

Reply
Re: Another Bay window rad set-up!

Hey man

Bus is looking great.

Any pics of behind the radiators? Hows the project progressing anyways?

I plan to also do the dual rad setup, haven't been sure what rads to use, but i'll look into the civic idea :wink:... WHat motor u putting in?


Yann70
22:57:07 Wed
Nov 9 2005

Offline
10 posts
Dreamer

Reply
Re: Another Bay window rad set-up!

What do you want to see? I can take the pixs you want! I'm puting a 1,9l TD, but I didn't worked on it for the past few month, I'm planning on finishing my hard coolant lines and exhaust before XMAS!!!




---
Yann
A-Bus-With-No-Name 77


axelotl
21:23:45 Thu
Aug 31 2006

Offline
1 posts
Dreamer

Reply
Re: Another Bay window rad set-up!

Hey Yann, I have been considering this setup for a while now. I am currently running an EJ22 with the radiator up front, but don't like where it sits, the 18 litres of water it takes, or how long it takes to come up to temp. I reckon your solution removes all these probs, have you had any problems with getting too much hot air in your engine bay?
Any other comments would be appreciated.

Cheers, Axel.


gazman
03:22:19 Fri
Jul 20 2007

Offline
10 posts
Dreamer


Reply
Re: Another Bay window rad set-up!

I have a similar setup but with one large rad on one side instead. was alot easier to plumb up.
you can view pics at :
http://www.geocities.com/gazman_4/kombiv6.html


welshbaybug
12:03:24 Fri
Jan 4 2008

Offline
2 posts
Dreamer

Reply
Re: Another Bay window rad set-up!

hey cool idea! Did you research and find out that that civic rads were the best? Where will you be putting the battery? I'm thinking about doing something similar with an ej20 engine. thanks
