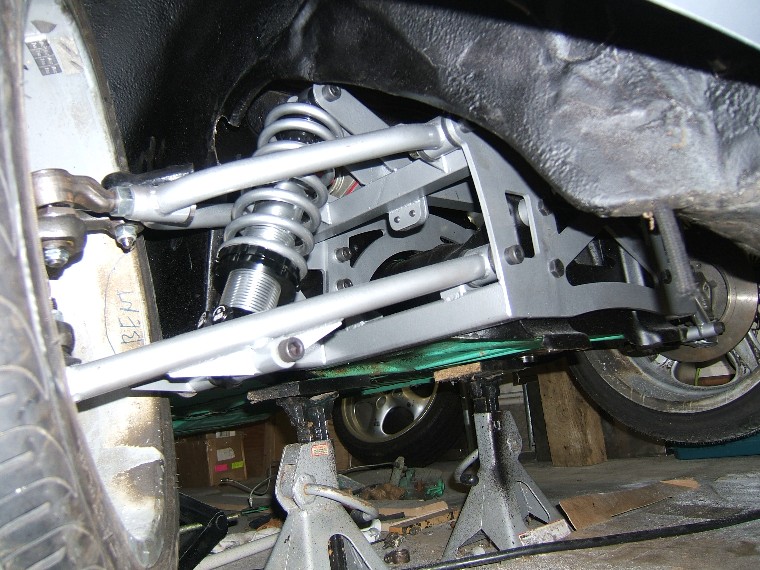

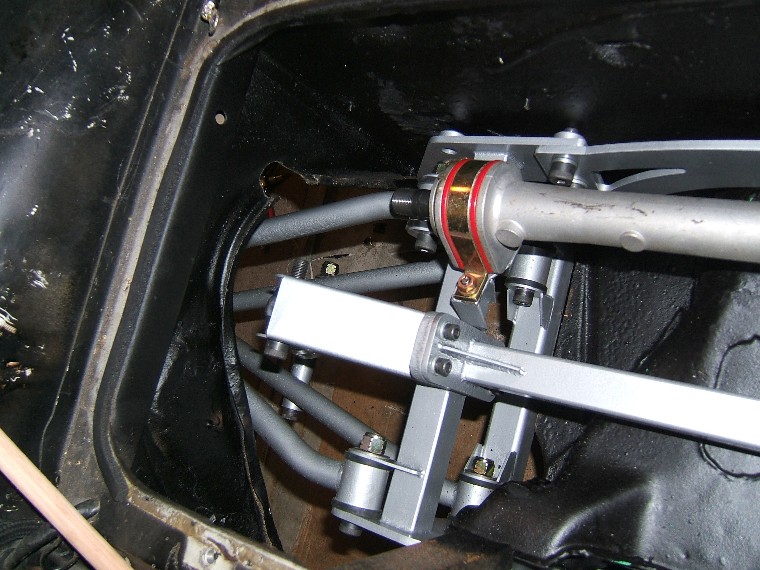

Double Wishbone Front Suspension












big_tko
23:34:39 Tue
Jan 13 2009

Offline
2 posts
Dreamer


Reply
Re: Double Wishbone Front Suspension

Where was this suspension purchased at and how much was it?


TURBOBUGGA
15:36:04 Fri
Feb 27 2009

Offline
5 posts
Dreamer

Reply
Re: Double Wishbone Front Suspension

volkdent,

how is the ride is it alot better than the stock? that set up look GREAT! Is that a porche brake set up? and what size are those wheels? i have a 1960 VWRX I need a good suspension upgrade to put all the power to the ground!


Auska148
01:35:51 Mon
Mar 23 2009

Offline
2 posts
Dreamer

Reply
Re: Double Wishbone Front Suspension

Its looks like the one offered by this place
http://www.eyeball-engineering.net it goes for 3000 plus shipping. It was featured in Hot Vw's magazine a year back or so.


volkdent
00:51:20 Thu
Apr 2 2009

Offline
13 posts
Dreamer

Reply
Re: Double Wishbone Front Suspension

Hi guys, sorry, havn't been on in a long time. The suspension is a one-off. I had it designed in Australia and built here. The ride is way better than stock, and the handling is 10 times better. The shocks are double-adjustable so it's just a matter of fiddling with the settings to get the ride you want. The brakes are Wilwood based on a custom hub from Vdub Engineering. I really don't know how much I spent, probably about $5K, but it was a lot of trial and error and a lot of extras like the hub that could have been done with Porsche stuff for less. Wheels are 17" up front 18" in rear. I have soft plans for a total redu utilizing Miata spindles that I think will make for absolutely no body mods and easier fabrication and installation.


LukesBug
22:21:59 Tue
Aug 18 2009

Offline
22 posts
Dreamer


Reply
Re: Double Wishbone Front Suspension

can you post those software plans? That setup looks sweet.
