Re: Sumps

Mate,thats a good job, well done.Might want to look at baffling the sump for oil surge.What you have done is the right way.Pretty much the same way mind has been done....My advice to others that have tried to market their sumps should look at this process.NICE JVLRacing


splitsubaru
20:12:58 Tue
Apr 11 2006

Offline
1 posts
Dreamer

Reply
Re: Sumps

could you please provide me with the dimentions in inches or centimiters( metric is better) of your sump Iīm in Chile so thereīs no way I can buy an aftermarket one...
please reply to: nmateluna@turbus.cl and hugoHschnake@yahoo.com


subcruiser
06:47:05 Fri
Oct 27 2006

Offline
4 posts
Dreamer

Reply
Re: Sumps

Sorry for this late reply, but the dimensions are 270mm x 400mm x 50mm. I cut the sump so there was 50mm left standing.
For the drain-plug I welded in a nut M20x1.5 so I could use the plug of the suby


subawho
01:21:05 Mon
Dec 10 2007

Offline
1 posts
Dreamer

Reply
Re: Sumps

regarding shortened sumps, bad idea. think about it, you shorten the pan and you lose capicity. ok you say, i'll widen the pan with pockets, remember, you only have one pickup, with this type of pan setup you have created a greater area for the oil to move awat from the pickup. result, spun bearings i have been building subaru's ssince early 1992. don pauter made the first stroker that i am aware of for me with the stroke and overbore we ended up with 2445 cc's. cams from web cams, titanium retainers forged venolia pistons, pauter aluminum rods, ported and polished heads, hilborn fuel injection, t4 turbo and methanol we ende up with right at580/600 hp in a sand bugggy that weighed in at 980 lbs. i have been through all sorts of combinations. current motor is H6 turbo and link plus engine management. what a ball to dune with! don't shorten your pan, bearing failure will follow.why do you think race cars have tall dry sump systems with several pickup points on the engine?


selmerusa
18:25:22 Mon
Jan 14 2008

Offline
34 posts
Dreamer

Reply
Re: Sumps

I think if you are close to stock stance, you shouldn't need to shorten your sump. I checked mine out and it looks like I have at least 5 or 6 inches clearance. If you have less than that you're probably either too low or sagging. Just be careful... or make sure your exhaust hangs a bit lower.. that way you'd lose your exhaust before your oil.


Bugat5speedUS
01:39:56 Wed
Oct 29 2008

Offline
3 posts
Dreamer

Reply
Re: Sumps

Reviving this thread due to question I saw earlier.

Some folks had asked about the Bugat5speed Sump.

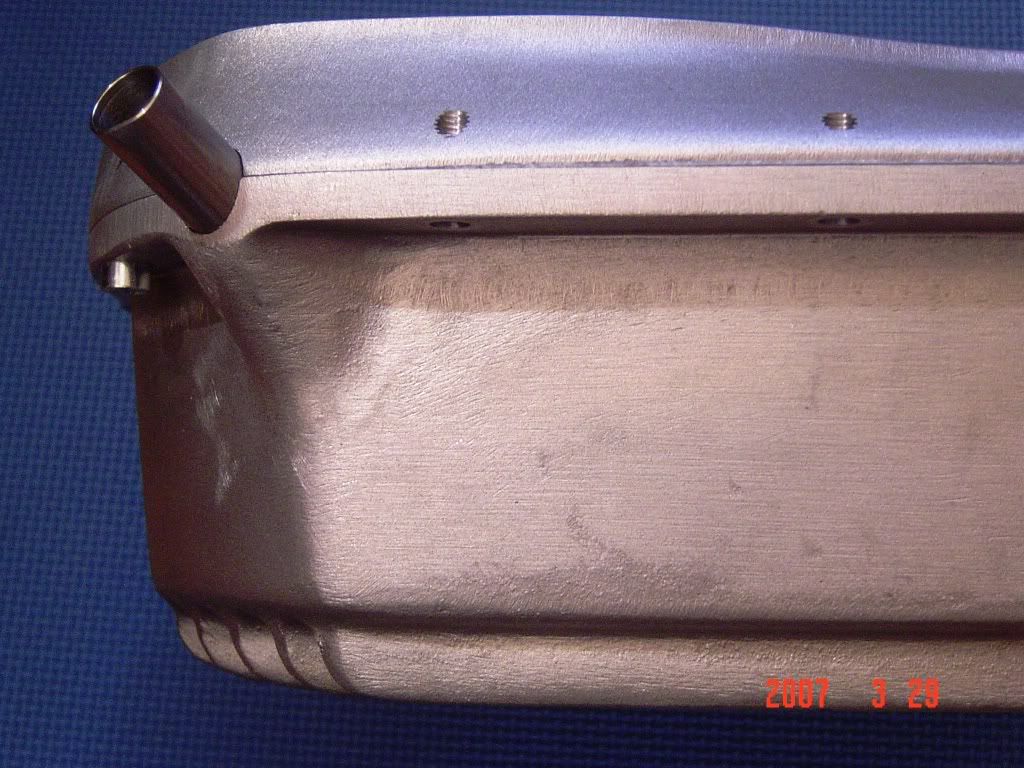

Here are some pics:









Some info on the product:
Details:
-Works with EJ 2.0, 2.2 and 2.5 blocks
-The sump is sandcasted like all our other parts.
-The capacity of oil is 4,25 litres (thatīs only 0,25 less than original). If you shorten an original sump you loose about a 1 litre.
-It is very stabile (you can put a hydraulic lifter under it and lift the car), so nothing happens if the car is low and the sump hits the floor). If you have the original sump, thatīs virtually impossible.
-The cooling properties are much better than with the original one. Water temperature is reduced by about 10 degrees Celsius, if you switch from original to the bug@5Speed sump.
-The pick-up tube inside the sump must be modified (shortened). But thatīs no big deal. Anyone who does such a project will easily handle this task.
-The original dipstick can be used, but must be shortened a little.

If interested, feel free to contact me: Bugat5speed@yahoo.com

VR
Alex
US Sales Associate


primerracer
20:41:18 Wed
Feb 4 2009

Offline
5 posts
Dreamer


Reply
Re: Sumps

a friend of mine (subarubug) just had a good idea to avoid the oilpan has to be shortened. Just raise the rear of your gearbox by modifying the rear mounting. Doing it this way the engine will be angled like in the stock engine bay in a legacy and lift the oilpan.


TURBOBUGGA
18:43:26 Fri
Oct 16 2009

Offline
5 posts
Dreamer

Reply
Re: Sumps

great looking sump! my 1960 uses stock sump and car is dropped 2 notches and its ok!

heres some inspiration video for you converters, its all worth it!

http://www.youtube.com/user/turbobugga#p/a/u/2/kX1_tnIPyLc

http://www.youtube.com/user/turbobugga#p/a/u/1/eml0Z70GX18


sirvee
02:40:22 Thu
Jan 3 2013

Offline
posts
Reply
Re: Sumps

Hi, will your sump fit a 6 cylindre SVX?
